toffee candy depositing machine
- Brand: ???
- Type: ???
SGDT150/300/450/600 toffee caramel depositing machine

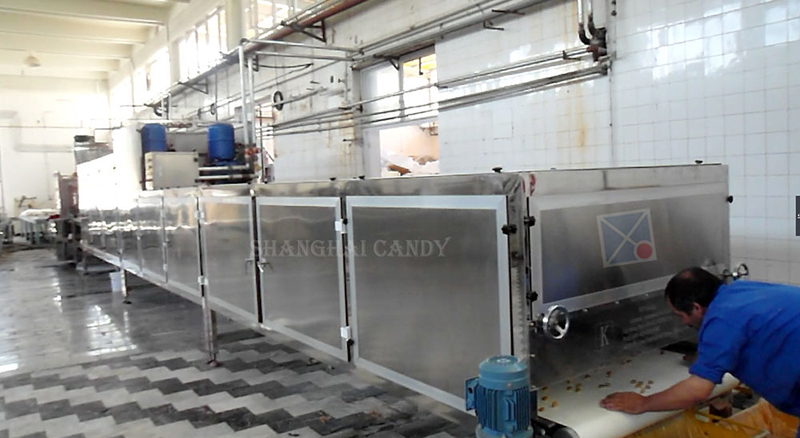

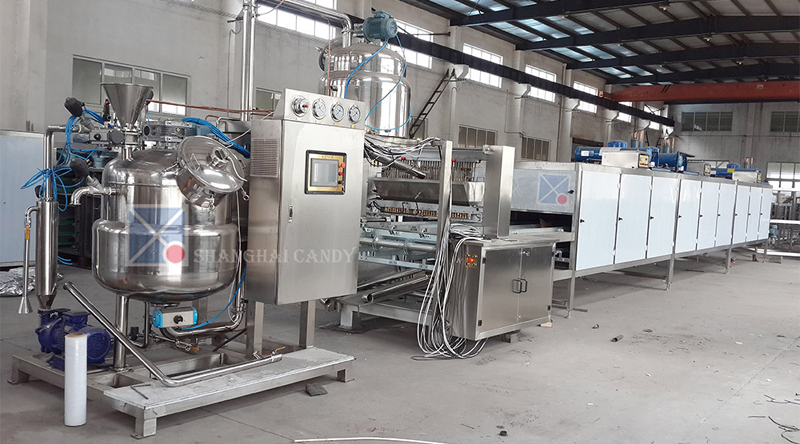

Toffee depositing line is the most advanced equipment for continuous making toffee caramel candy. It gathered machinery and electric all in one, using the silicone moulds automatically depositing and with tracking transmission demoulding system. It can make pure toffee and center filled toffee. This line consists of jacketed dissolving cooker, transfer pump, pre-heating tank, special toffee cooker, depositor, cooling tunnel, etc.
Deposited toffee candy processing flowchart :
Raw material dissolving→Transporting→Pre-heating→Toffee cooking→Add oil and flavor→Storage→Depositing→Cooling→De-moulding→Conveying→Packing→Final product
Technical Specifications:
|
Model |
SGDT150 |
SGDT300 |
SGDT450 |
SGDT600 |
|
Capacity |
150kg/h |
300kg/h |
450kg/h |
600kg/h |
|
Candy Weight |
As per candy size |
|||
|
Depositing Speed |
45 ～55n/min |
45 ～55n/min |
45 ～55n/min |
45 ～55n/min |
|
Working Condition |
Temperature: 20～25℃； Humidity: 55% |
|||
|
Total power |
18Kw/380V |
27Kw/380V |
34Kw/380V |
38Kw/380V |
|
Total Length |
20m |
20m |
20m |
20m |
|
Gross Weight |
3500kg |
4500kg |
5500kg |
6500kg |
